Description
Warranty:
Asia Set – 1 Year Warranty under Local Seller
Maxsoft Set – 1 Year Warranty under Local Supplier
Nintendo Switch Lite is a compact, lightweight Nintendo Switch system dedicated to handheld play.
With a built-in +Control Pad and a sleek, unibody design, it’s great for on-the-go gaming.
Nintendo Switch Lite is compatible with the robust library of Nintendo Switch games that support handheld mode.
If you’re looking for a gaming system all your own, Nintendo Switch Lite is ready to hit the road whenever you are.
Nintendo Switch™ Lite console［HDH-001］
Size
91.1 mm tall x 208 mm wide x 13.9 mm wide
Weight
Approx. 275 g
Screen
Capacitive touch screen / 5.5 inch LCD / 1280×720 pixels
CPU/GPU
NVIDIA customised Tegra processor
System Memory
32GB
* The space available for save data excludes the amount reserved for system files.
Communication Features
Wireless LAN (IEEE 802.11 a/b/g/n/ac compatible) / Bluetooth 4.1 / NFC
(Near-Field Communication)
Video Output
Speakers
Stereo

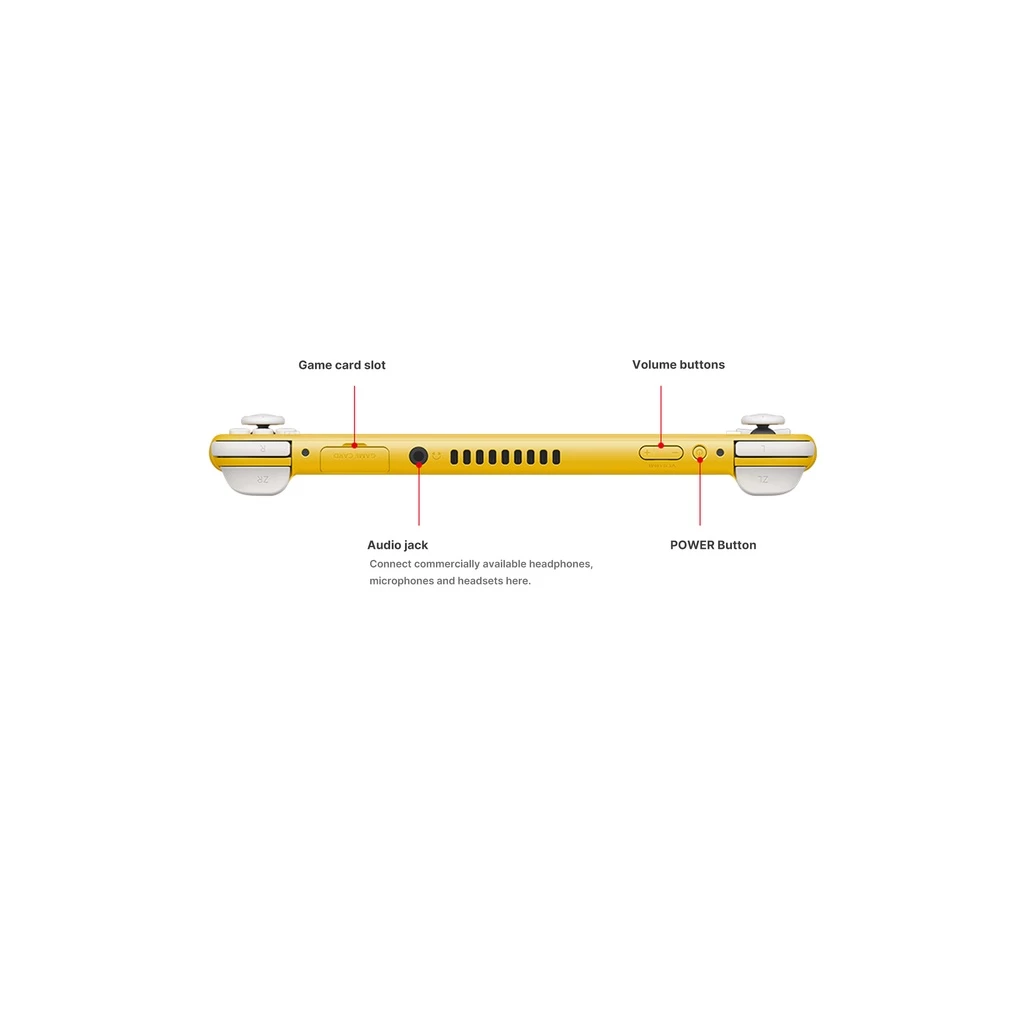

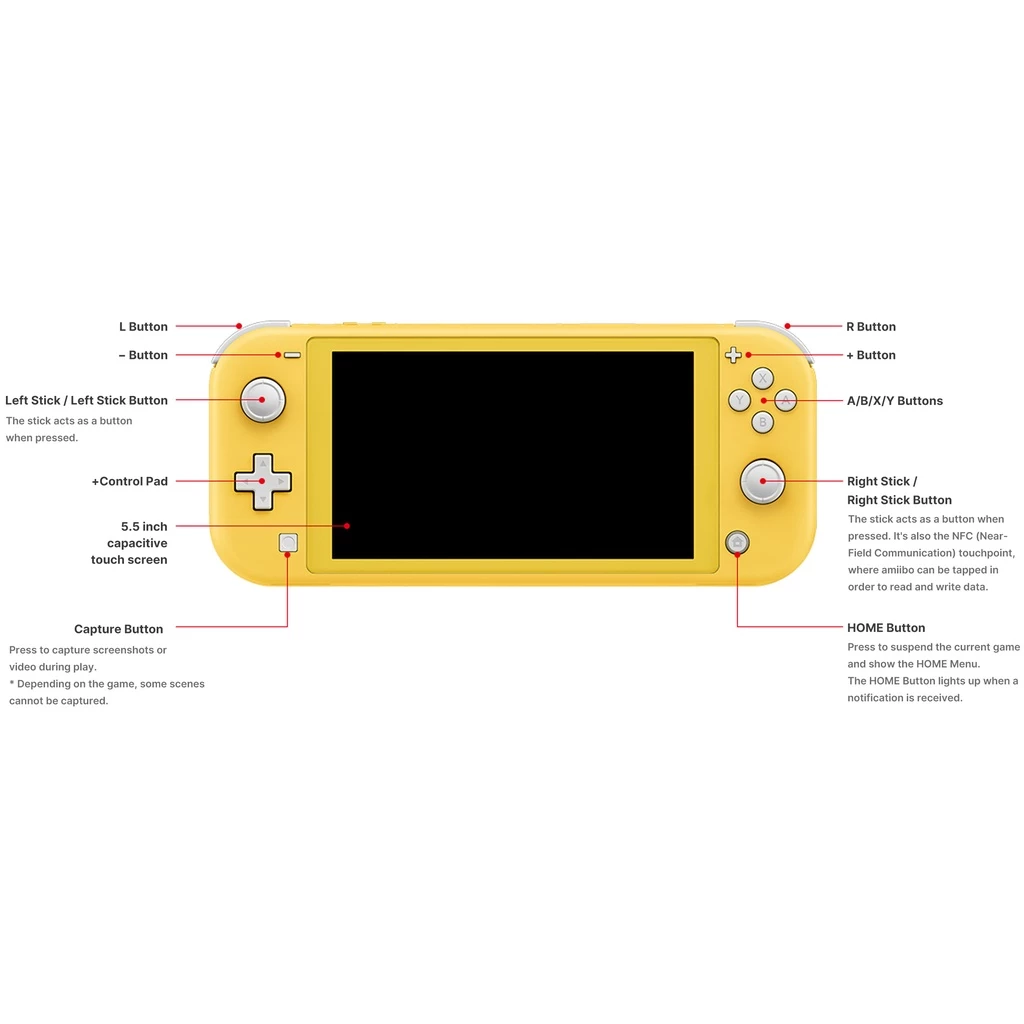

Buttons
Left Stick / Left Stick Button
Right Stick / Right Stick Button

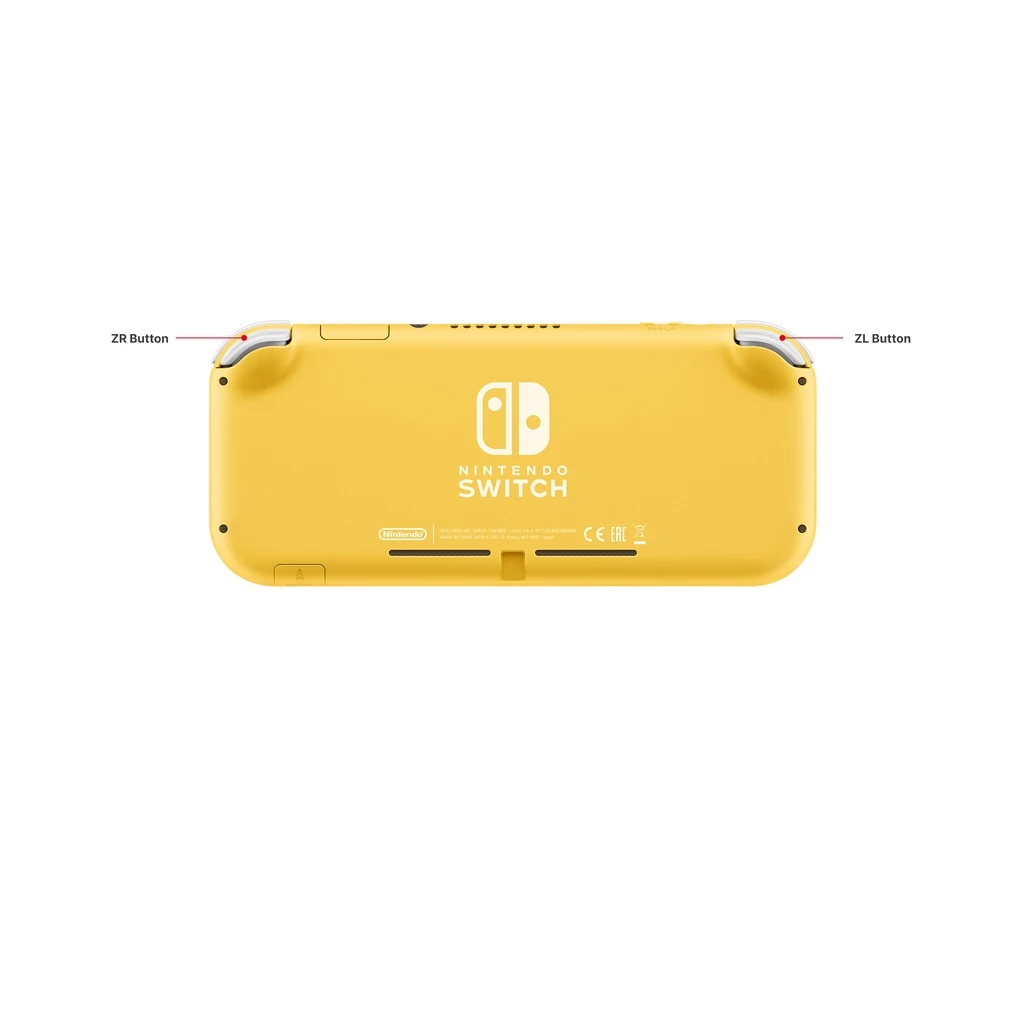

A/B/X/Y/L/R/ZL/ZR Buttons
+ Button / − Button
+Control Pad
POWER Button
Volume buttons
HOME Button
Capture Button

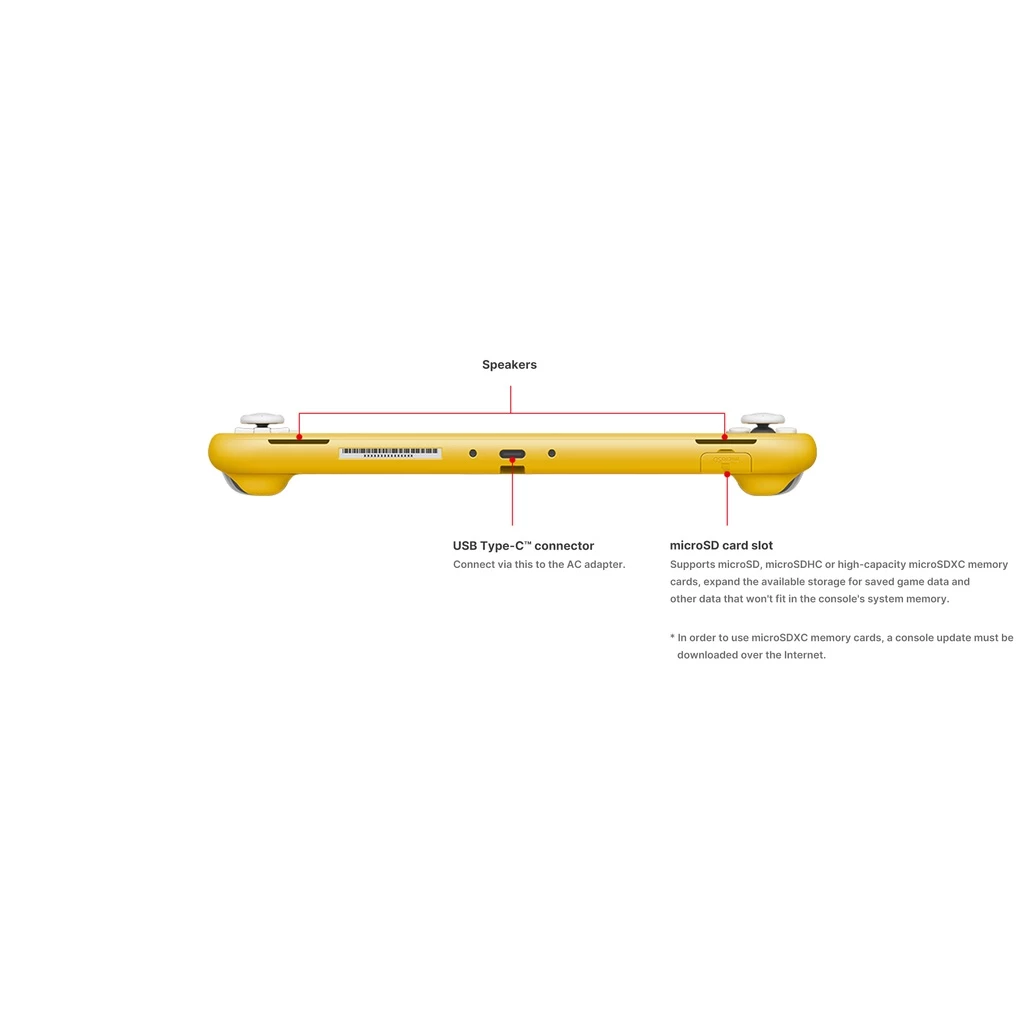

USB Connector
“USB Type-C™ connector
For charging the console”
Audio
Jack
3.5 mm 4 pole stereo mini plug (CTIA standard)
Game Card
Slot
For Nintendo Switch game cards only
MicroSD
Card Slot
microSD/microSDHC/microSDXC memory card compatible
* In order to use microSDXC memory cards, a console update must be downloaded over the Internet.
Sensors
Accelerometer/Gyroscope
Operating Environment
Temperature: 5 – 35℃ / Humidity: 20 – 80%
Internal Battery
Lithium-ion / Capacity: 3570 mAh
* The internal battery cannot be removed. If replacement is necessary, please contact your
local customer service center
Battery Life
Approx. 3.0 – 7.0 hours
Energy Consumption
Active gaming: 4 W
Streaming media (HD): 3 W
HOME Menu: 2 W
Sleep Mode: 0.03 W
Power off: less than 0.01 W
Estimated annual energy consumption *1: 3 kWh
Charging Time
Approx. 3 hours
